Alipay

iOS

Ready-to-Use UI

If you are using our ready-to-use checkout screens

1. Drap and drop OPPWAMobile-Alipay.framework to the "Frameworks" folder of your project.
   Make sure "Copy items if needed" is checked.


2. Embed the framework
   • Go to the app target’s General configuration page.
   • Add the framework target to the Embedded Binaries section by clicking the Add icon.
   • Select OPPWAMobile-Alipay.framework from the list of binaries.


3. Add a Run Script

The framework contains a build for both the simulator (i386, x86_64) and the actual devices (ARM). As it is not permitted to submit a binary for an unsupported architecture to App Store, you have to add script that "manually" removes unused architectures from the final binary.

• Go to the app target’s Build Phases tab.
• In Xcode menu, select Editor > Add Build Phase > Add Run Script Build Phase. You should now see a Run Script section in your Build Phase options.
  Important: "Run Script" phase should be put after "Embed Framework" phase. You can reoder build phases by dragging them using your mouse.
• Set it to use /bin/sh and check the Run script only when installing option.
• Enter the following script:

APP_PATH="${TARGET_BUILD_DIR}/${WRAPPER_NAME}"
find "$APP_PATH" -name 'OPPWAMobile*.framework' -type d | while read -r FRAMEWORK
do
    FRAMEWORK_EXECUTABLE_NAME=$(defaults read "$FRAMEWORK/Info.plist" CFBundleExecutable)
    FRAMEWORK_EXECUTABLE_PATH="$FRAMEWORK/$FRAMEWORK_EXECUTABLE_NAME"
    echo "Executable is $FRAMEWORK_EXECUTABLE_PATH"

    EXTRACTED_ARCHS=()

    for ARCH in $ARCHS
    do
        echo "Extracting $ARCH from $FRAMEWORK_EXECUTABLE_NAME"
        lipo -extract "$ARCH" "$FRAMEWORK_EXECUTABLE_PATH" -o "$FRAMEWORK_EXECUTABLE_PATH-$ARCH"
        EXTRACTED_ARCHS+=("$FRAMEWORK_EXECUTABLE_PATH-$ARCH")
    done

    echo "Merging extracted architectures: ${ARCHS}"
    lipo -o "$FRAMEWORK_EXECUTABLE_PATH-merged" -create "${EXTRACTED_ARCHS[@]}"
    rm "${EXTRACTED_ARCHS[@]}"

    echo "Replacing original executable with thinned version"
    rm "$FRAMEWORK_EXECUTABLE_PATH"
    mv "$FRAMEWORK_EXECUTABLE_PATH-merged" "$FRAMEWORK_EXECUTABLE_PATH"

done

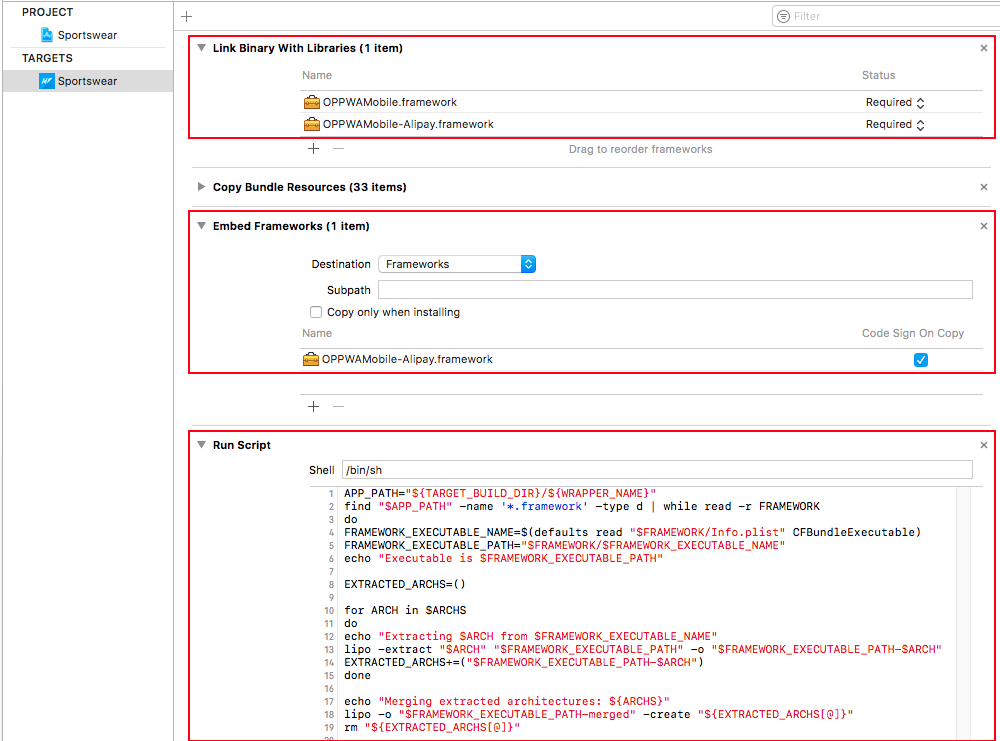

4. Review your Build Phases:
   • OPPWAMobile-Alipay.framework is added to the "Embed Frameworks" phase.
   • "Run Script" phase is put after the "Embed Frameworks" phase and contains our script.



5. Configure Alipay in OPPCheckoutSettings along with other customizations.

Set your custom URL scheme:

OPPCheckoutSettings *checkoutSettings = [[OPPCheckoutSettings alloc] init];
checkoutSettings.schemeURL = @"com.companyname.appname.payments";

let checkoutSettings = OPPCheckoutSettings()
checkoutSettings.schemeURL = "com.companyname.appname.payments"



6. Make sure Alipay is included to the payment brand list:



checkoutSettings.paymentBrands = @[@"ALIPAY", ... ];

checkoutSettings.paymentBrands = ["ALIPAY", ...]

And you are done!

---

SDK & Your Own UI

If you are using our SDK & Your Own UI then there is a little more work to be done, but it is still easy to add. There are two options for accepting Alipay payments:

1. Accept Alipay payment as usual asynchronous transaction. For this reason, please see this guide.
2. Accept Alipay payment using their native SDK. This case will be describe bellow.

Create OPPPaymentParams with the checkout id and submit a transaction. See below the full Alipay flow.

NSError *error = nil;
OPPPaymentParams *paymentParams = [OPPPaymentParams paymentParamsWithCheckoutID:checkoutID paymentBrand:@"ALIPAY" error:&error];
if (error) {
    // See error.code (OPPErrorCode) and error.localizedDescription to identify the reason of failure.
} else {
    OPPTransaction *transaction = [OPPTransaction transactionWithPaymentParams:paymentParams];
    [self.provider submitTransaction:transaction completionHandler:^(OPPTransaction * _Nonnull transaction, NSError * _Nullable error) {
        if (error) {
            // Handle the error.
        } else {
            // Use transaction.alipaySignedOrderInfo for authorization transaction through Alipay SDK
        }
    }];
}

do {
    let paymentParams = try OPPPaymentParams(checkoutID: checkoutID, paymentBrand: "ALIPAY")
    let transaction = OPPTransaction(paymentParams: paymentParams)
    provider.submitTransaction(transaction) { (transaction, error) in
        if (error != nil) {
            // Handle the error.
        } else {
            // Use transaction.alipaySignedOrderInfo for authorization transaction through Alipay SDK
        }
    } catch let error as NSError {
        // See error.code (OPPErrorCode) and error.localizedDescription to identify the reason of failure.
    }

Call the native method from Alipay SDK with the value alipaySignedOrderInfo property from the transaction which your received in the callback:

[[AlipaySDK defaultService] payOrder:transaction.alipaySignedOrderInfo fromScheme:@"com.companyname.appname.payments" callback:^(NSDictionary *resultDic) {
    // Sent request to your server to obtain transaction status
}];

AlipaySDK.defaultService().payOrder(transaction.alipaySignedOrderInfo, fromScheme: "com.companyname.appname.payments") { (result) in
    // Sent request to your server to obtain transaction status
}

Alipay may return the result of the transaction directly in the completion block or as Asynchronous notification to App delegate.

Set<String> paymentBrands = new LinkedHashSet<String>();

paymentBrands.add("ALIPAY");

CheckoutSettings checkoutSettings = new CheckoutSettings(checkoutId, paymentBrands);

PaymentParams paymentParams = new PaymentParams(checkoutId, "ALIPAY");
Transaction transaction = new Transaction(paymentParams);

/* use IProviderBinder to interact with service and submit transaction */
binder.submitTransaction(transaction);

PayTask payTask = new PayTask(YOUR_ACTIVITY.this);
String result = payTask.pay(transaction.getAlipaySignedOrderInfo());

/* process the result */
